Traditional Brass Window Hardware
Casement Locks

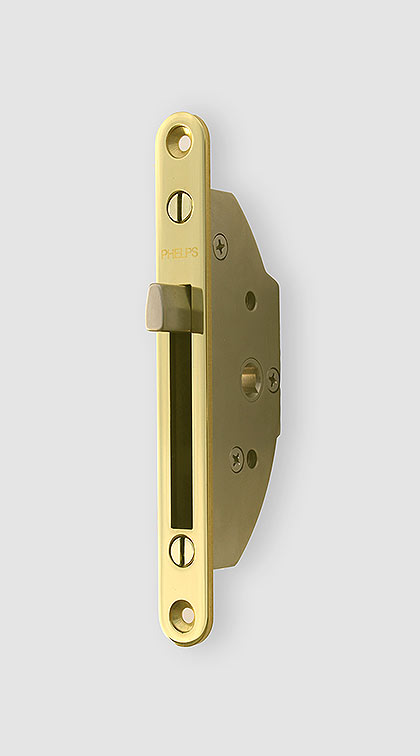

Model CL95 is a casement lock designed to be compatible with our CF2MP casement handle as well as any other handle using standard European mounting dimensions. The action is precise and positive in both locked and unlocked positions. The 1" backset permits its use in outswing and inswing applications, and the slim design makes it ideal for narrow window and door stiles. The construction is solid brass and stainless steel. The strike is included, and matches the lock faceplate dimensions.
Faceplate Dimensions: 5/8" (16mm) x 5 1/2"
Lock Body Dimensions: 15/32" x 4 15/16"
Overall Depth: 1 5/8"
Backset: 1" (25mm)
Spindle Hub: 7mm
Casement Handles

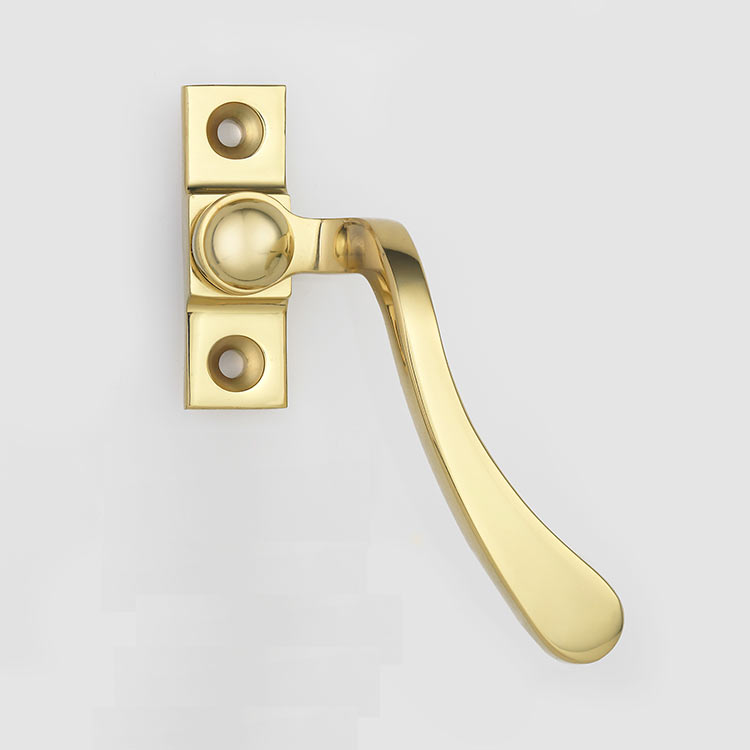

Model CF2MP is a traditionally designed handle for push out casement windows that use European multipoint latching mechanisms. A positive integral stop limits the handle rotation to 90 degrees. It has a standard 7mm spindle and comes with two M5 X 40mm mounting screws. Hot-forged solid brass, precision machined and hand polished. Available left and right handed (right handed shown).
Base Dimensions: 3/4" x 2-3/8"
Handle: 3-1/2"
Overall Depth: 1-7/8"
Casement Fasteners

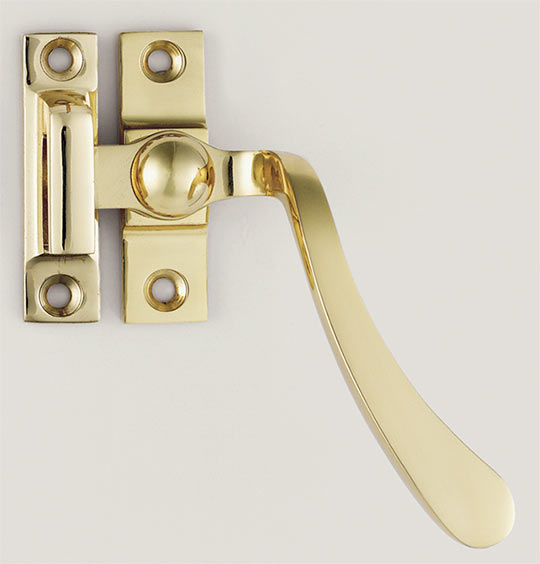

Model CF222 is an elegant, traditionally designed casement fastener, hot-forged from solid brass and hand polished. Available either right-or left-handed. (Right-hand shown with Model CFSS surface strike. Mortise, rim, or angle strike also available.)
Base Dimensions: 11/16" x 2-3/8"
Handle: 3-1/2"
Overall Depth: 1-7/8"

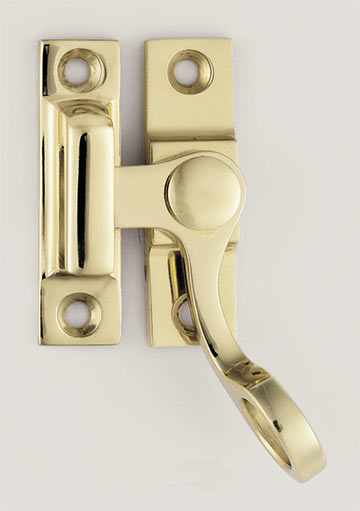

Model CF780 is a traditionally designed casement fastener, hotforged from solid brass and hand polished. Available either right-or left-handed. (Right-hand shown with Model CFSS surface strike. Mortise, rim or angle strike also available.)
Base Dimensions: 11/16" x 2-3/8"
Handle: 2"
Overall Depth: 1-1/4"
Strike Plates for Casement Fasteners
CFMS Mortise strike
CFSS Surface strike
CFRS Rim strike
*CFAS Angle strike
*(for use on windows with compression weatherstripping.)
